PUSH ROD

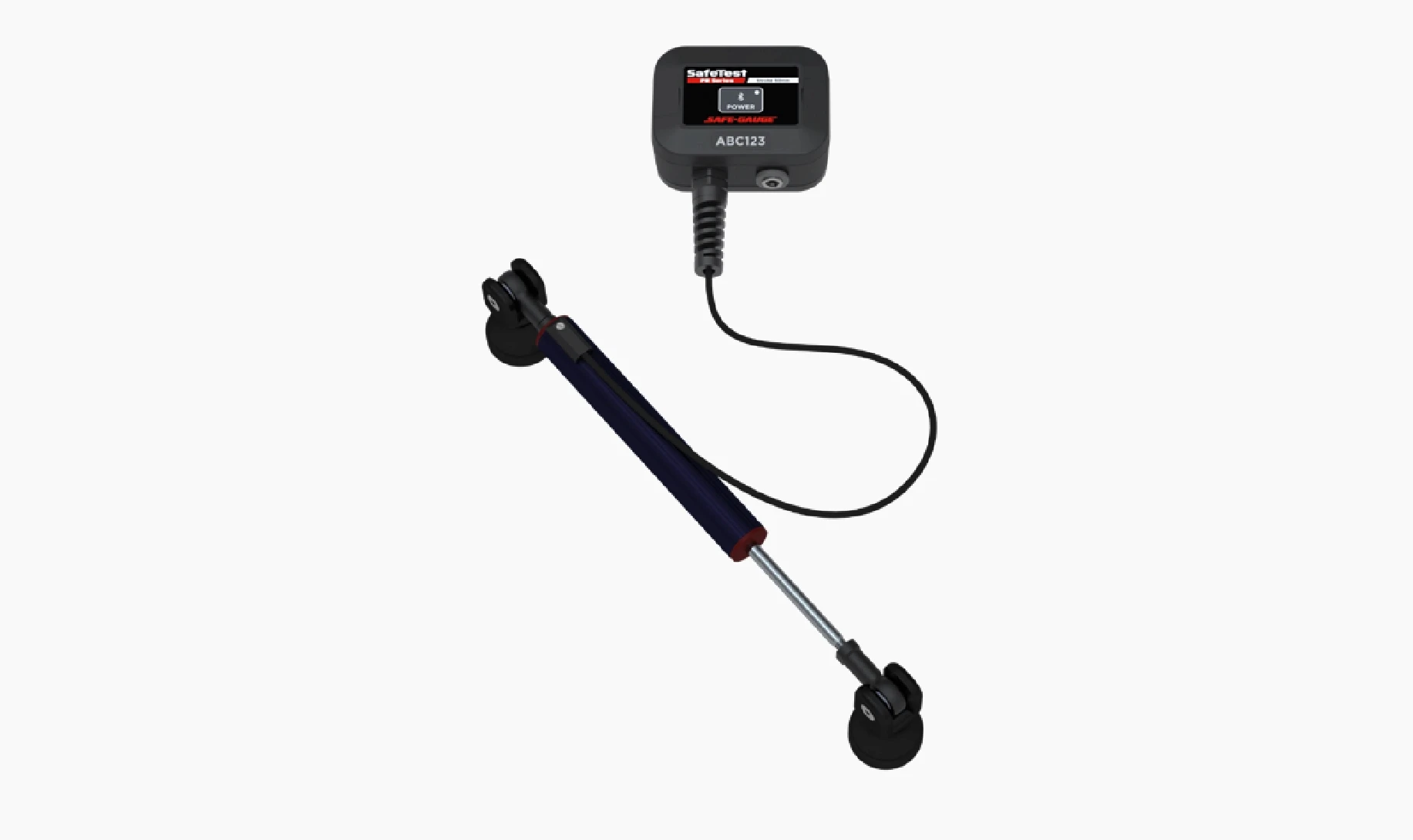

The Wireless Push Rod enables technicians to obtain precise displacement measurements quickly and safely between two fixed points, even in areas with uneven surfaces or varying angles.
The Wireless Push Rod enables technicians to obtain precise displacement measurements quickly and safely between two fixed points, even in areas with uneven surfaces or varying angles.
The versatile articulating magnetic mount allows for
rapid setup time and flexibility in mounting locations.

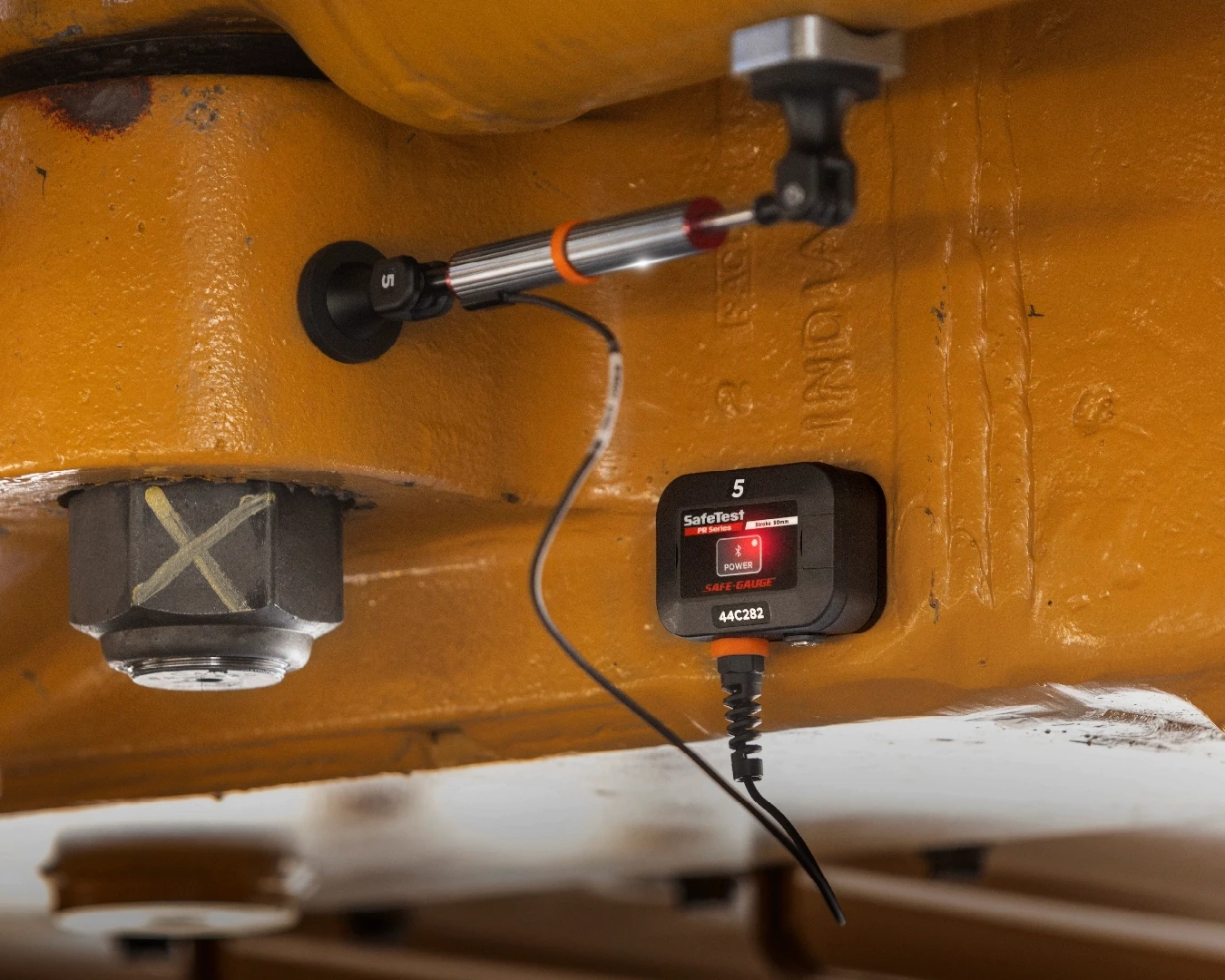

Simply place the sensor across the measured points, zero the sensor and watch as accurate data streams into the MultiTool Pro. The rubber-coated magnets fix the SafeGauge Push Rod to machinery securely, and provide vibration resistance during dynamic testing.
PRODUCT TESTIMONIAL
“When a machine is down, you need answers quick. This is a very useful, proven product, perfect for the job. Being a lightweight measuring device means it will stay securely on the machine and give accurate measurements.”
PUSH ROD
TECHNICAL SPECIFICATIONS
ELECTRICAL
Power Connector: DC barrel jack
Battery: Internal NiMH (Nickel Metal Hydride) pack
Battery life-cycle: 1000 cycles
Charging: Charge only with SafeGauge charging case
Charging Time: 4 hours
Operating Time: 25 hours
Cable Length: 500mm (1.64ft)
MECHANICAL
Weight: 455g (16oz)
Material: Communication box: ABS plastic
Sensor: Aluminium housing with stainless steel shaft
Ingress Protection: IP67
Accuracy: ±0.05mm (0.002in) over 10mm (0.4in) of travel
and ±0.25mm (0.01in) of full scale
Mounting Options:
• Magnetic mounting plates on transmitter box and each end of the sensor
• Fixes to any metal surface containing iron
• V-Blocks available for mounting on curved surfaces
Measurement Span: 50mm (1.97in)
COMMUNICATION
Maximum range: Up to 100m (328ft)
PUSH ROD
PUSH ROD
KIT OPTIONS
KIT OPTIONS

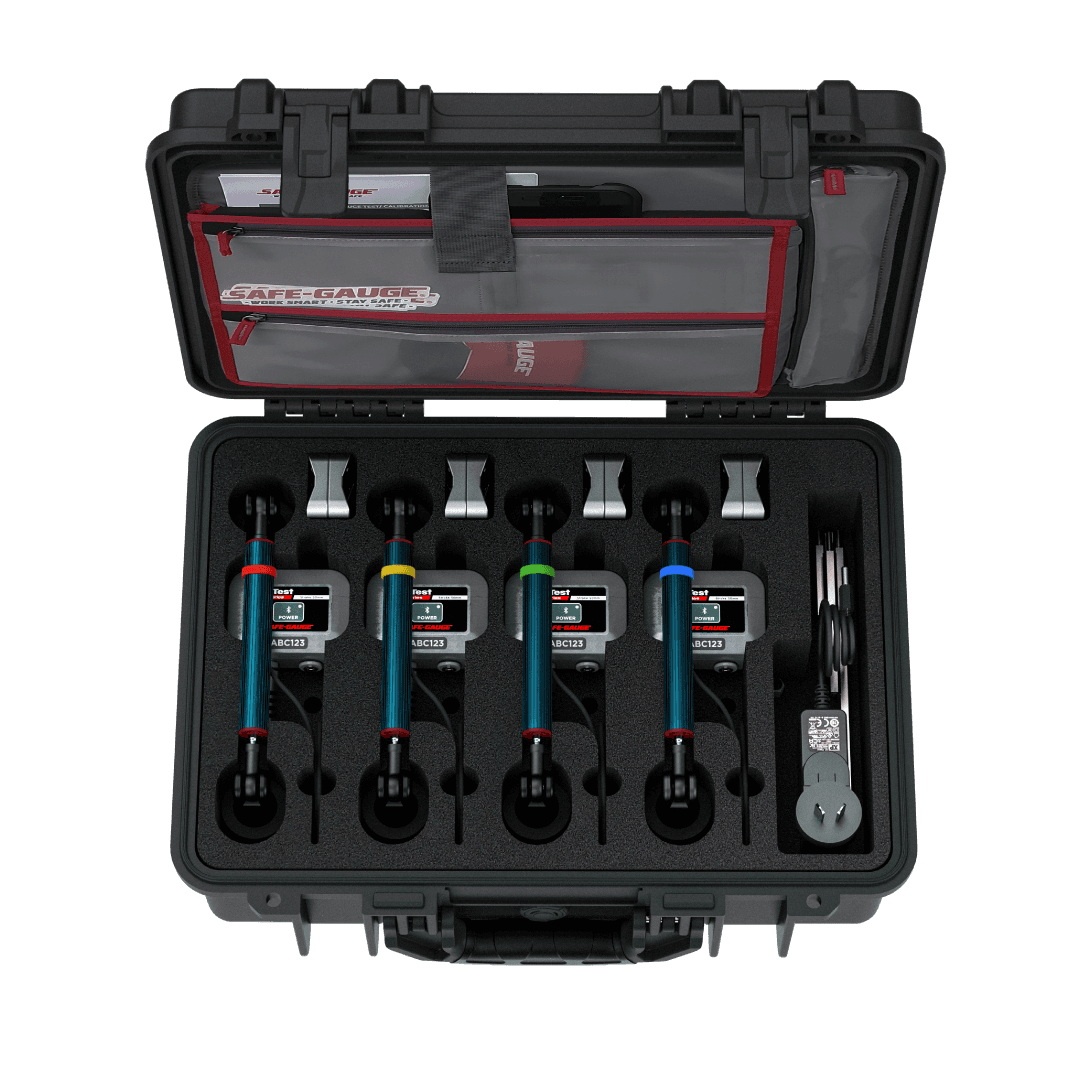

PR-04-050
4 Channel Push Rod kit with a standard MultiTool or MultiTool Pro
PR-04-050
4 Channel Push Rod kit with a standard MultiTool or MultiTool Pro
PR-04-050
4 Channel Push Rod kit with a standard MultiTool or MultiTool Pro

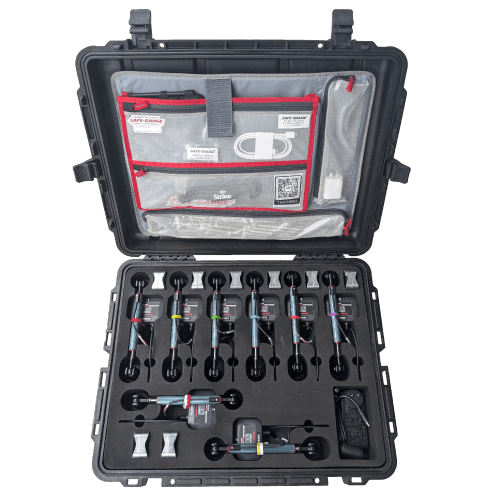

PR-08-050
8 Channel Push Rod kit with MultiTool Pro
PR-08-050
8 Channel Push Rod kit with MultiTool Pro
PR-08-050
8 Channel Push Rod kit with MultiTool Pro
